Cmh

Electrobombas CMH

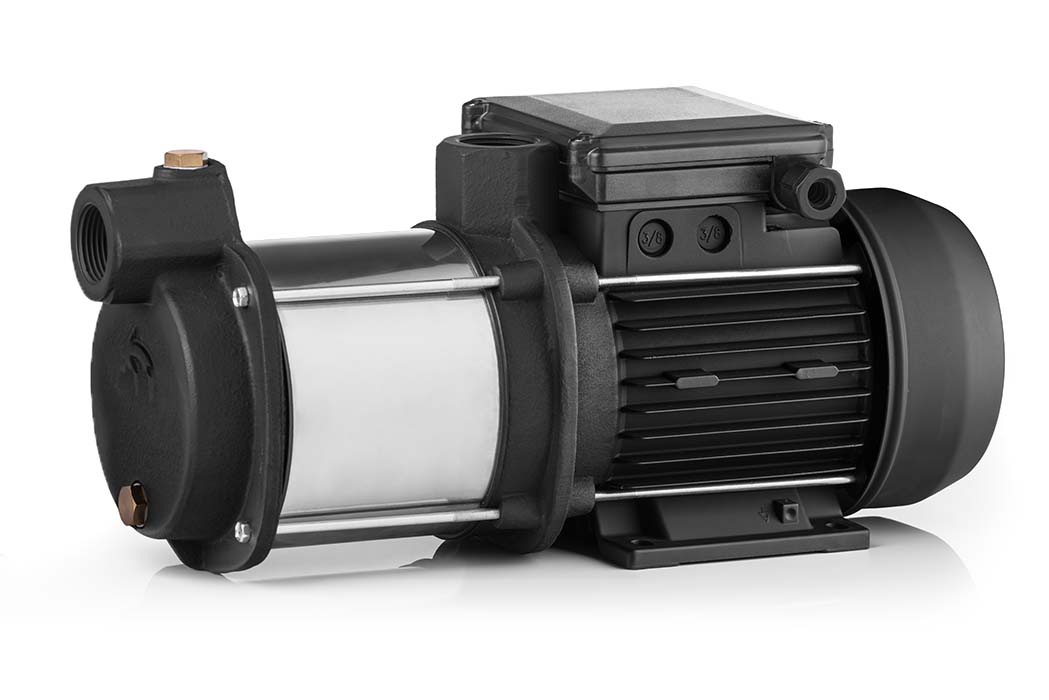

Horizontal Multistage Centrifugal Pumps

Características

CMH 10" - 1" Total Head: 69m Max Capacity: 3,6m3/h

21 - 88m
Pressão Max

3.9 - 22m³/h
Caudal Max

0.37 - 3kW
Potência do motor

G 1 - 1½ F
Descarga

Application

CMH pumps are suitable for use with clean water. These pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure tanks, and for the irrigation of gardens and orchards, etc.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

Pump body and pusher in cast iron. Exterior shell and impeller in stainless steel (AISI304). Shaft in stainless steel (AISI 416). Diffusor in noryl with fiber-glass.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Temperatura máx. da água: 35ºC; Arranques máximos por hora: 30.

Performance

Especificações

Serie Kw Power Condensador Passagem DNC QMax HMax Palete
