Características

30 - 85m
Pressão Max

3.9 - 23.4m³/h
Caudal Max

0.37 - 3kW
Potência do motor

G 1 F / G 2 F
Descarga

Application

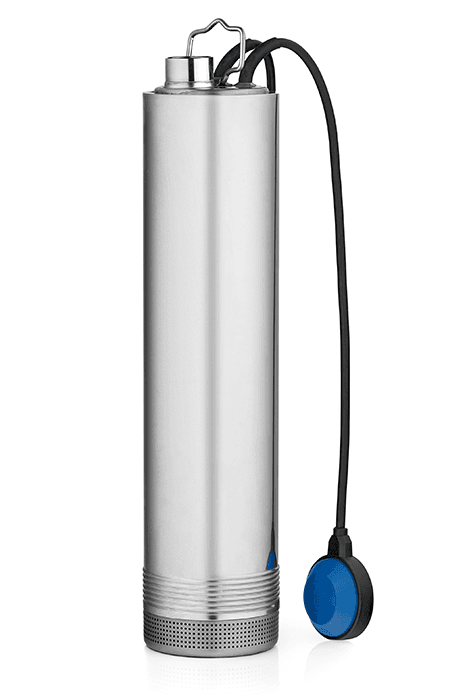

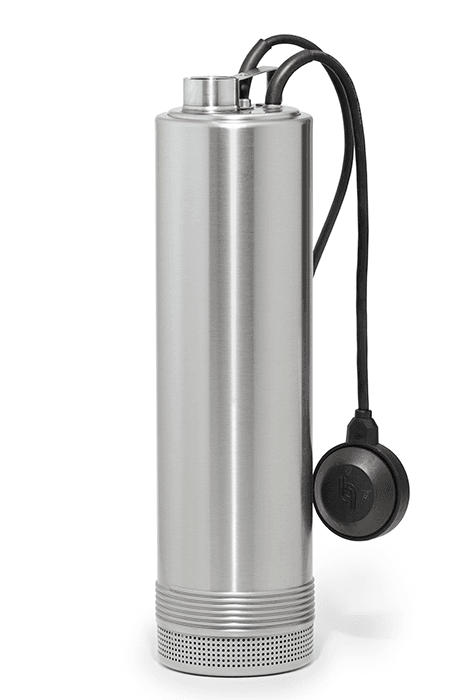

Aqualiju series are suitable for use with clean water in domestic, civil and agricultural applications such as the distribution of water in combination with pressure sets, for the irrigation of gardens and allotments and for pressure boosting, etc..
"Aqualiju SA" series are special suitable for direct installation at the bottom of tanks thanks to the lower guide, in Noryl, of shaft and the rubber feet on the bottom of the pump that reduce vibration.

Installation

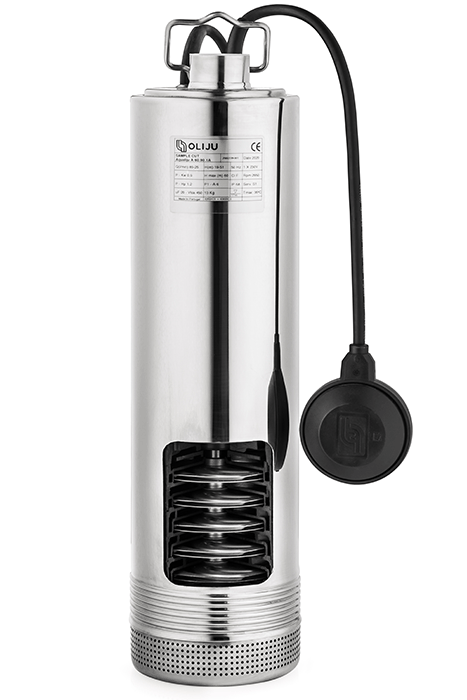

Permanent or transportable. Model with float switch control for automatic pump operation, depending on liquid level. The combination of stainless steel for the turbines and glass fiber reinforced NORYL for broadcasters, provides excellent resistance to abrasion due to sand for maximum efficiency

Materials

Double seals, lip seals and reinforced carbon ceramic mechanical seal. Pump casing, pump head and impellers in 304 stainless steel, 420 stainless steel shaft

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.
Max. sand contents: 60g/m3.

Motor

Engine oil immersed food, non-toxic, non-polluting. Externally cooled by the pumped liquid. Insulation class F. Motor protection IP68. Thermal sensors imbedded in the motor winding.

Features

Power cable: 20 m neoprene.
Immersion depth of 20 m.
Max. starts/hour: 30

Performance

Especificações

Serie Kw Power Condensador Passagem DNC QMax HMax Palete
